Pleated Filter Element

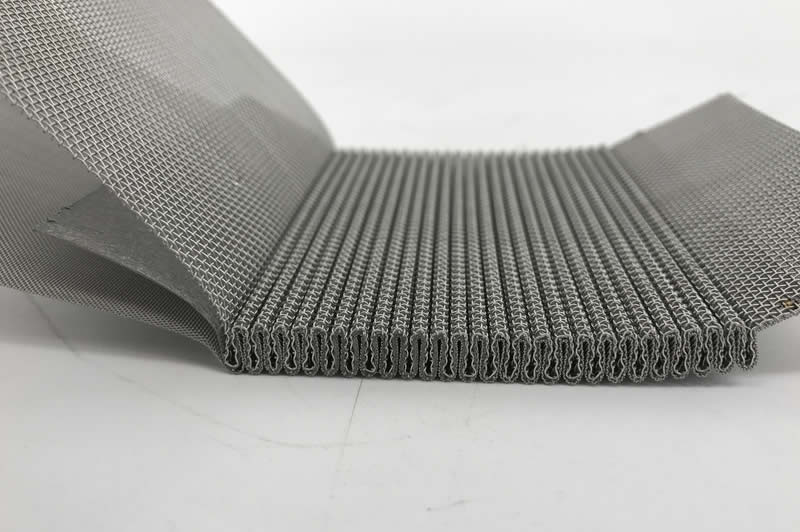

Filter media for Pleated Filter Elements are stainless steel sintered fiber felt and stainless steel woven wire cloth.
Filter Media: Stainless Steel woven mesh or sintered metal fiber
Stainless steel sintered fiber felt is a honey comb filter hole with high filtration rate. And it is a kind of durable and pleating-able, enough pleating can get bigger filtration area. Sintered into a graded pore structure, enjoys the advantages of high porosity rate, more filtration area, high dirt holding capacity and can be repeatedly used.
Stainless steel woven wire cloth is made by weaving of stainless steel wire in a variety of diameters. Filter elements with stainless steel woven wire cloth as filter medium, enjoy such advantages of good strength, fastness, easily cleanable, heat-resistance and economic cost.
Alloy: Stainless Steel, Duplex SS, Supper Duplex SS, Monel, Hastelloy, Inconel, FeCr Al, Fe3Al etc.
Advantage:
-Large filtration area and particle holding capacity;
-High porosity rate, good air permeability and filtration ability;
-Suitable for viscous liquid filtration, recycled using after cleaning;
-Workable in High temperature or and high pressure.
Specification:
-Filtration rate: 3-200μm
-Temperature: -50℃-800℃
-Diameter:14-180mm, Length:35-1500mm
-Hanke Filter can be customized by your demands.
Application:
-High polymer industry;
-BOPP industy
-Petrochemical, petroleum refining
-Pharmaceutical and food refining or cycling
-Hydraulic machine
-Gas controlling
-Water treatment

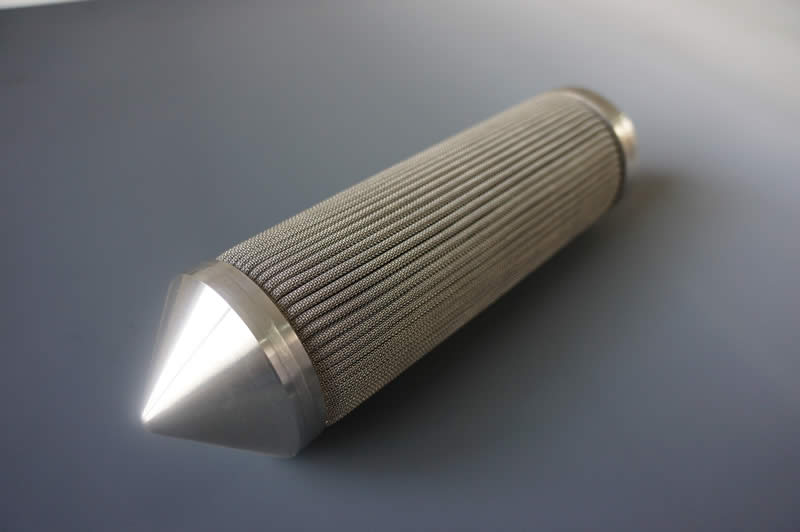

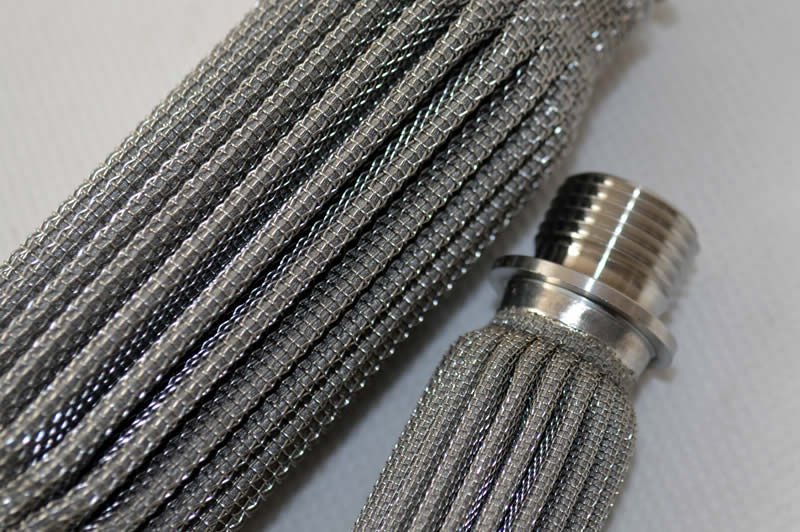

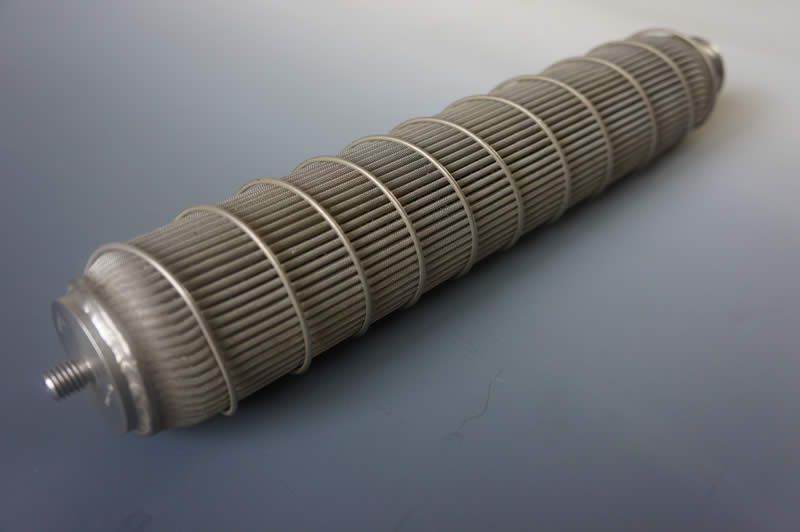

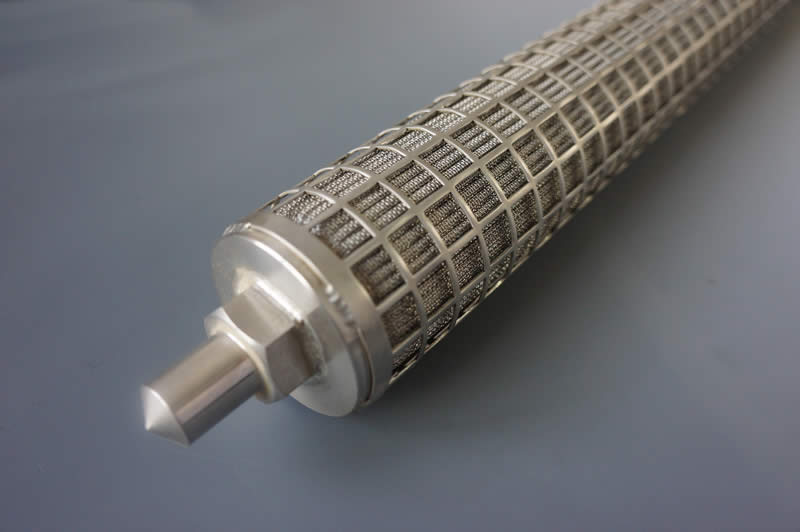

Photo List
Specification
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-86/200-R | 200 | 86 | M65x2P | 0.20 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/350-R | 350 | 0.35 | ||||
| PF-86/500-R | 500 | 0.50 | ||||
| PF-100/800-R | 800 | 100 | M80x2P | 1.00 |
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-65/250-R | 250 | 226 223 220 215 | 0.135 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth | |
| PF-65/500-R | 500 | 0.38 | ||||
| PF-70/750-R | 750 | 70 | 0.42 | |||
| PF-70/750-R | 750 | 0.60 |
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-35/102-R | 102 | M18 M20*2.5 M20*1.5 NPT1" 3/4 - 16 | 0.026 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth | |
| PF-35/207-R | 207 | 0.07 | ||||
| PF-35/210-R | 210 | 0.07 | ||||
| PF-35/242-R | 242 | 0.08 | ||||
| PF-35/425-R | 425 | 0.15 | ||||
| PF-35/485-R | 485 | 0.20 |
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-62/180-R | 180 | 62 | G1" | 0.09 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/254-R | 254 | 86 | G2" | 0.17 | ||
| PF-86/381-R | 381 | 0.20 | ||||
| PF-86/508-R | 508 | 0.27 | ||||
| PF-86/760-R | 760 | 0.58 | ||||
| PF-140/760-R | 760 | 140 | 0.65 |
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-60/1432-R | 1432 | 60 | 2" * 12UN - 2A | 1.015 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/1241-R | 1241 | 0.98 | ||||
| PF-60/1025-R | 1025 | 0.81 |
| Model | L (mm) | D (mm) | M | Filter Area (M2) | R (µm) | Filter Media |
|---|---|---|---|---|---|---|
| PF-60/400-R | 400 | 60 | M33 * 1.5P M33*2P | 0.40 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/500-R | 500 | 0.50 | ||||
| PF-60/1000-R | 1000 | 1.00 |
