Dutch Wire Mesh
Dutch Wire Mesh is also known as filter cloth, filter wire cloth or micron cloth.
High Quality Anti Rust Used in Telecom-Communication of Stainless Steel 304 or 316 or 304L or 316L Dutch Weave Wire Filter Mesh Cloth
Typical Weaving Patterns: Dutch plain, Dutch twill, Dutch reverse.
PLAIN DUTCH WEAVE MESH
TWILLED DUTCH WEAVE MES
Plain Dutch Woven Wire Mesh is similar to plain weave wire mesh, while the warp wires are thicker and lie closer to each other. This type of woven stainless steel wire mesh is mainly used as industrial filter cloth and apparatus of separation.
Twill Dutch Woven Wire Cloth is made with a combination of the Hollander Weave and the twill weave. This type enables a strong wire cloth with super fine filtration.
General Use: Filtering and screening in airspace, oil and chemicals.

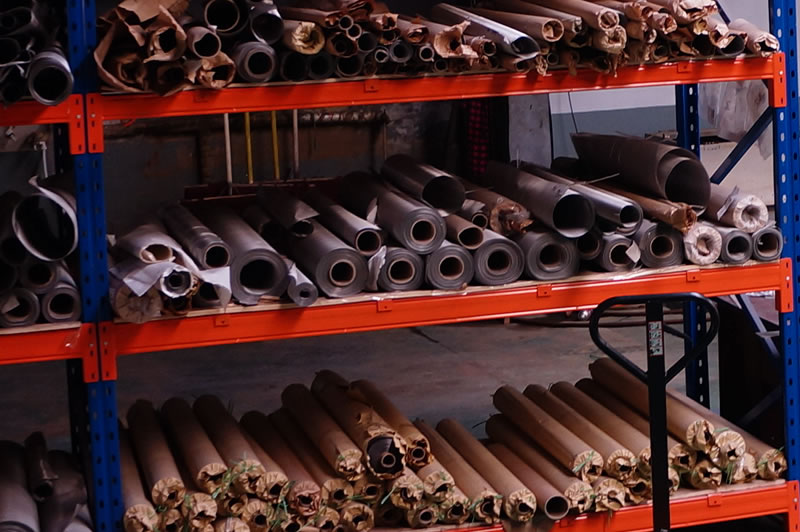

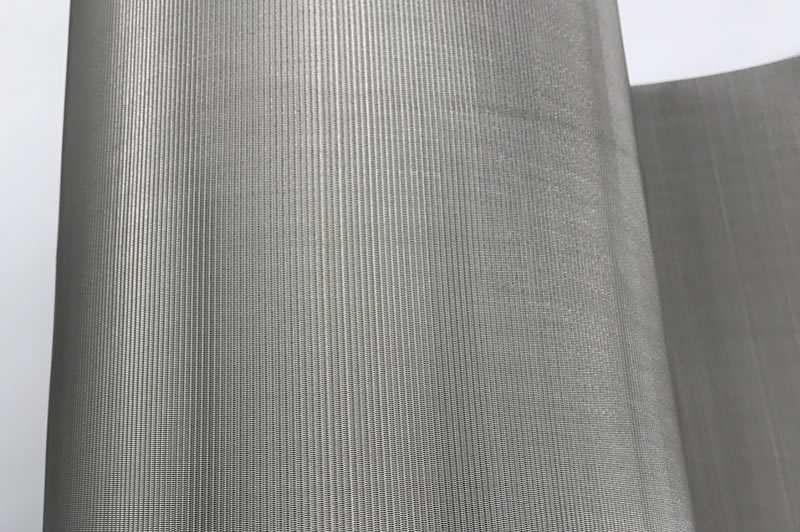

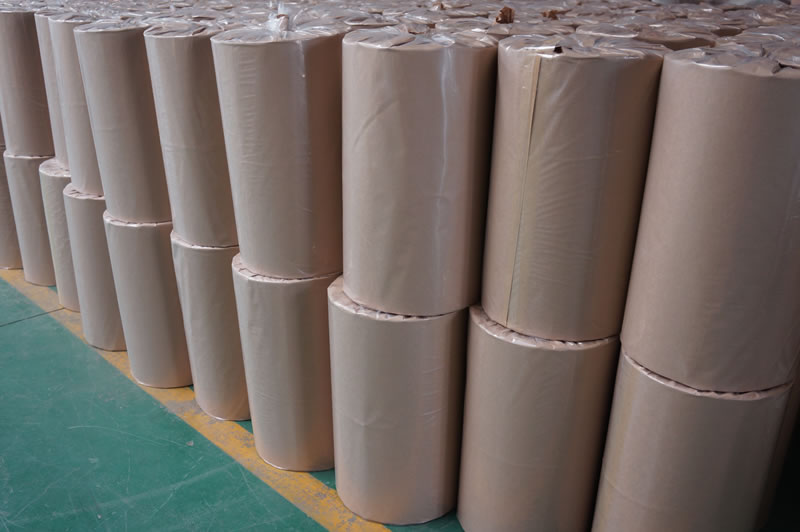

Photo List
Specification
| Mesh | Wire Dia. (MM) | Material (AISI) |
| 12mesh x 64mesh | 0.58 x 0.40 | 304 or 316 |
| 24mesh x 110mesh | 0.36 x 0.25 | 304 or 316 |
| 14mesh x 88mesh | 0.50 x 0.33 | 304 or 316 |
| 30mesh x 150mesh | 0.23 x 0.18 | 304 or 316 |
| 40mesh x 200mesh | 0.18 x 0.13 | 304 or 316 |
| 50mesh x 250mesh | 0.14 x 0.11 | 304 or 316 |
| 80mesh x 700mesh | 0.10 x 0.08 | 304 or 316 |
| 165mesh x 800mesh | 0.071 x 0.040 | 304 or 316 |
| 165mesh x 1400mesh | 0.06 x 0.04 | 304 or 316 |
| 200mesh x 1800mesh | 0.05 x 0.032 | 304 or 316 |
| 825mesh x 2300mesh | 0.035 x 0.025 | 316L |
| 400mesh x 2800mesh | 0.030 x 0.02 | 316L |
