Knitted Wire Mesh

Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Wire diameter of knitted wire mesh: 0.10mm---0.55mm(commonly used:0.2—0.28mm)

The standard knit of the insulation mesh is 8 stitches per inch of width and 6-8 courses per inch of length.

Knitted wire mesh products are applied to : vibration & shock absorption, air & liquid filtration, gasket & sealing, heat transfer & insulation. Suitable for petroleum, chemicals, industries, medicine, machinery, shipbuilding, automobile, tractor industries such as distillation, filtration process, and used as automobile air filter.

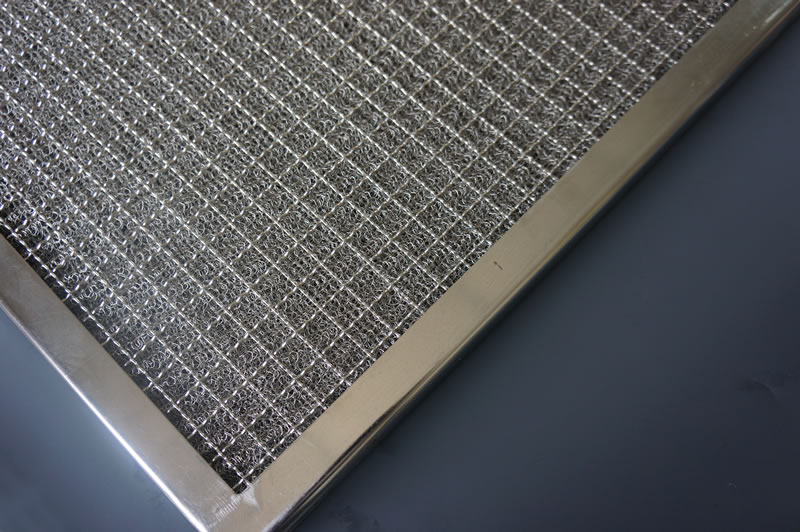

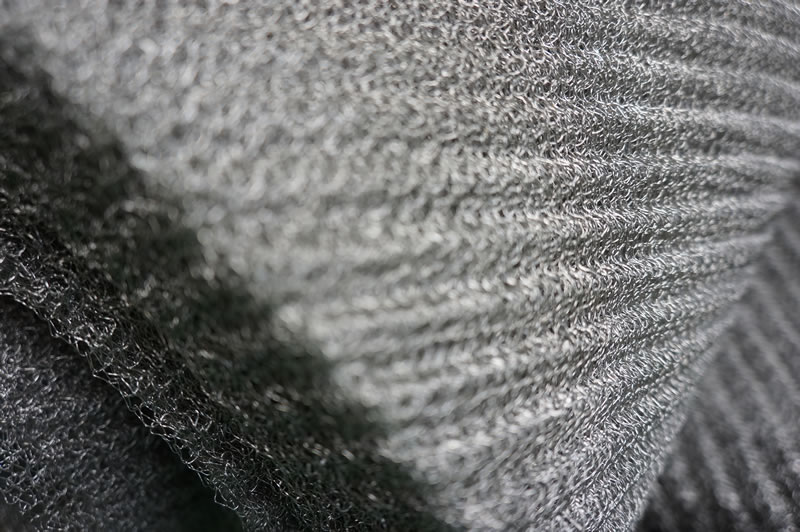

Photo List

Specification

Knitted wire mesh / Gas Liquid Separator Filter Mesh
Material	Stainless steel wire, Copper wire, Brass wire, Nickel wire, Titanium wire, Monel wire, galvanized wire, PP, PE, PVC etc.
Woven type	Crochet weaving
Filament	Mono-filament, Multi-filament
Wire diameter	0.08-0.5mm, normally the diameter is 0.20---0.25mm
Width	40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 600mm,etc
Hole size	2x3mm-4x5mm-12x6mm
Surface type	Flattened , Ginning

Model	Hole amount and width	Wire diameter (mm)	Materials	Weight (kg/m2)
Standard type	40-100mm	0.1X0.4	1Cr18Ni9	1/0.5
	60-180mm	0.1X0.4	1Cr18Ni9	1/0.5
	140-400mm	0.1X0.4	1Cr18Ni9	1/0.5
	40-100mm	0.27	Galvanized Lead wire	1/0.7
	40-100mm	0.1X0.4	Red copper wire	1/0.7
Efficient type	70-100mm	0.1X0.3	Stainless steel wire	1/0.6
	80-100mm	0.1X0.3	Stainless steel wire	1/0.6
	90-150mm	0.1X0.3	Stainless steel wire	1/0.6
	200-400mm	0.1X0.3	Stainless steel wire	1/0.6
	60-100mm	0.1X0.5	Stainless steel wire	1/0.6
High weaving type	30-150mm	0.1X0.4	Stainless steel wire	1/0.4
High weaving type	70-400mm	0.1X0.4	Stainless steel wire	1/0.4
