Crimped Wire Mesh
Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped Wire Mesh Material: Iron wire, galvanized wire, stainless steel wire, copper wire and other non-ferrous metal.
Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Crimped Wire Mesh Features: offering stable structure, good strength, uniform mesh and durable
Crimped Wire Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, railroad, bridge and also used as fence or filters in a lot of industries etc.

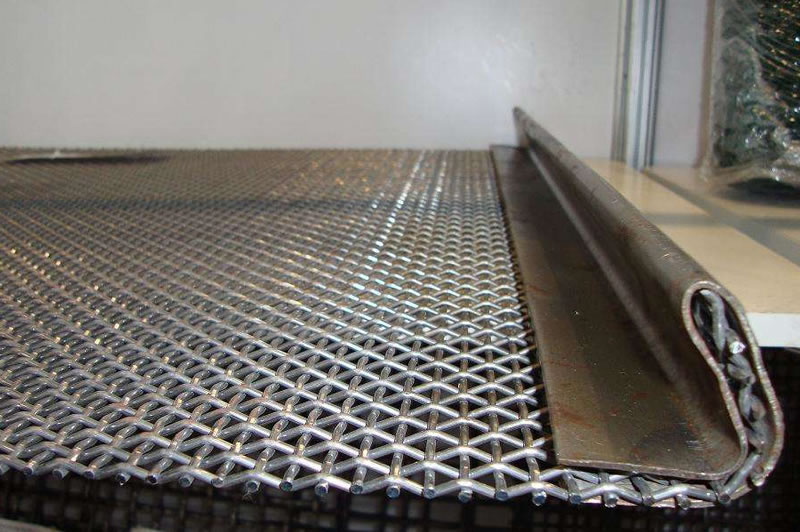

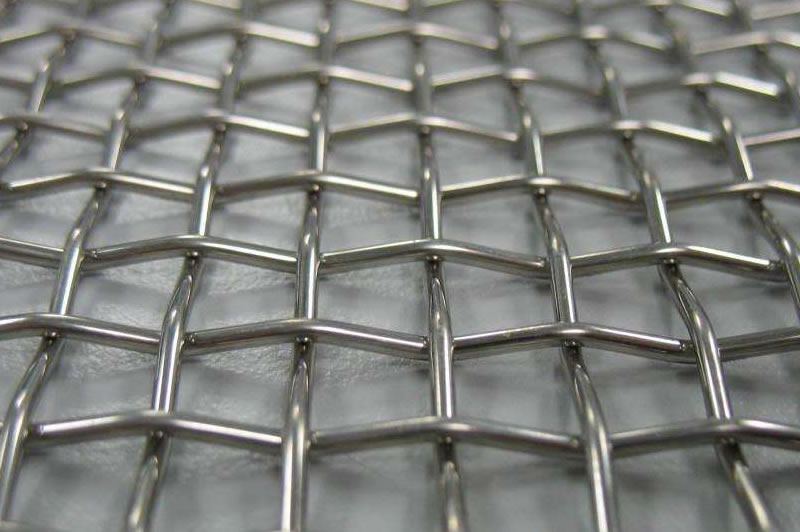

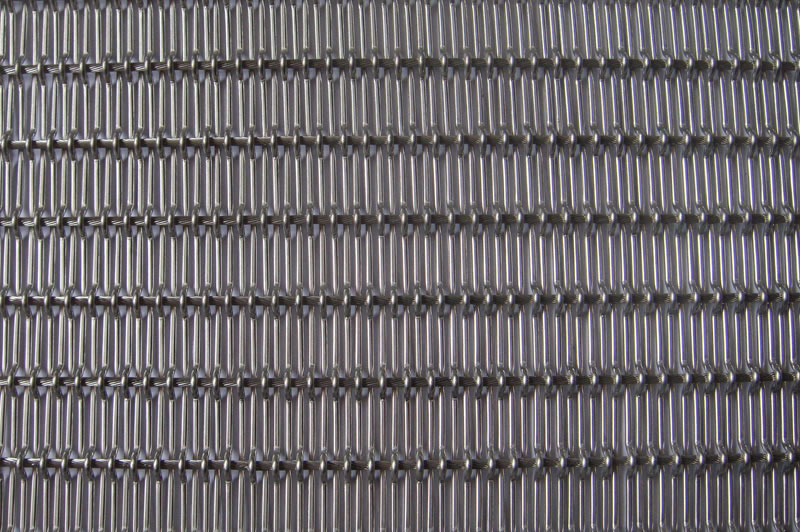

Photo List
Specification
| Wire Gauge (BWG) | Aperture Size ( mm) | Wire Dia. ( mm) | Weight(Kg/ m2) |
| 8 | 30 | 4.06 | 6.00 |
| 8 | 25 | 4.06 | 7.00 |
| 8 | 20 | 4.06 | 8.00 |
| 8 | 15 | 4.06 | 1.00 |
| 8 | 12 | 4.06 | 13.00 0 |
| 8 | 10 | 4.06 | 15.00 0 |
| 10 | 30 | 3.25 | 4.00 |
| 10 | 25 | 3.25 | 4.70 |
| 10 | 20 | 3.25 | 5.80 |
| 10 | 15 | 3.25 | 7.40 |
| 10 | 10 | 3.25 | 10.00 0 |
| 12 | 30 | 2.64 | 2.70 |
| 12 | 12 | 2.64 | 3.20 |
| 12 | 20 | 2.64 | 3.90 |
| 12 | 15 | 2.64 | 5.00 |
| 12 | 10 | 2.64 | 7.00 |
| 14 | 20 | 2.03 | 2.38 |
| 14 | 15 | 2.03 | 3.10 |
| 14 | 12 | 2.03 | 3.70 |
| 14 | 10 | 2.03 | 4.35 |
| 14 | 8 | 2.03 | 5.22 |
| 14 | 6 | 2.03 | 6.52 |
| 14 | 4 | 2.03 | 8.68 |
| 14 | 3 | 2.03 | 10.40 0 |
| 16 | 15 | 1.63 | 2.03 |
| 16 | 10 | 1.63 | 2.90 |
| 16 | 8 | 1.63 | 3.50 |
| 16 | 6 | 1.63 | 4.40 |
| 16 | 4 | 1.63 | 5.99 |
| 18 | 12 | 1.22 | 1.43 |
| 18 | 10 | 1.22 | 1.68 |
| 18 | 8 | 1.22 | 2.05 |
| 18 | 6 | 1.22 | 2.62 |
| 18 | 4 | 1.22 | 3.62 |
| 18 | 3 | 1.22 | 4.48 |
| 20 | 12 | 0.91 | 0.82 |
| 20 | 10 | 0.91 | 0.96 |
| 20 | 8 | 0.91 | 1.18 |
| 20 | 5 | 0.91 | 1.78 |
| 20 | 4 | 0.91 | 2.15 |
| 20 | 3 | 0.91 | 2.69 |
